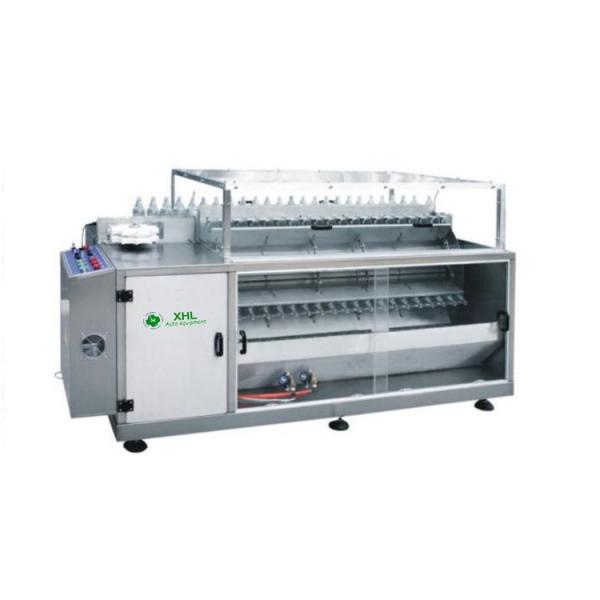

XHL-XP/200 rolling bottle rinser machine for 5-1000ml glass bottle machine
Overview
XP rolling bottle rinser is the product which is upgrading from foreign same series, it has good out-looking, reasonable components location, simpleconstruction, easy operate,running stably. It suit to round bottles and iregular bottleswith shoulder, washed by couple of water and one air (ROwater and Punified water, punified air) step by step, residual water can be drew out by purified air blowing. Optional ultrasonic device to technical requirements.
Features
-Unique structure, adopting machine mould to fix bottle to wash alone, low breakage ratio of bottle
-Reasonbale washing process with high deanliness
-Low consumption of water and air
-It is easy to operate, convenient to maintain
-Independent use or connected to complete filling line.
-Meet the requirements of GMP
Our service and warrantee
1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training serive ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.
Main Technical parameters
| Product model | XP/200 |
| Applicable bottle specification | 5-1000ml |
| Power consumed | 1.2kw |
| RO water consumption | 0.4-0.7t/h 0.1-0.4Mpa |
| Applicable bottle type | round, irregular glass bottle |
| Pure water comsumption | 0.4-0.7t/h 0.1-0.4Mpa |
| Purified air consumption | 20m^3/h, 0.3-0.6Mpa |
| Single machine noise | <=70db |
| Power Supply | 220v 50Hz |
| weight | 600kg |
| Production capacity | 40-200bpm |
We can customize with your packaging materials, production capacity and demands. We will provide you with associated design solutions and case videos.
