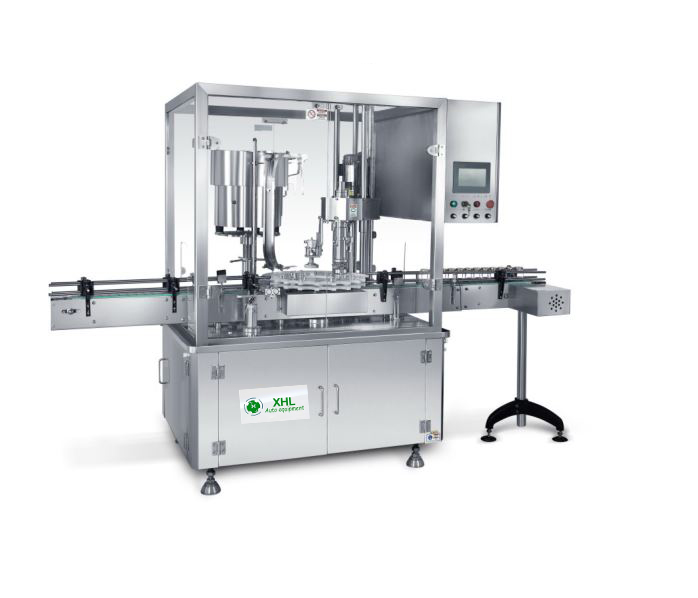

XHL XG/2 disc positioning glass and plastic bottle capping machine
Product Description
Overview
The XG round disc positioning type cap turning(capping) machine is an economical device. The machine is designed to ues the round dics for positioning the bottles for intermittent movement. The positioned bottles are subject to cap turning (capping) by the cap turning (capping) heads. The machine is highly practical and is an ideal piece of equipment for cap turning of bottles in such industries as medicine, food, chemical industry, pesticide, etc.
Features
- Automatic cap unscrambling with high capping rate and cap turning rate.
-Positioning by the round disc, easy change of specifications and wide adjustment range.
- Smooth bottle feeding and discharging, variablefrequency speed control, easy to be connected for linked production.
- The tightness of the air gripper type cap turning headcan be adjusted without damaging the bottle and cap.
- The capping head adopts flexible design with easy adjustment, and can also be designed to be used for pull caps.
- Continuous operation to complete automatic production,saving time and improving efficiency.
- The cap turning machine can be equipped with a servomotor, and the torque is adjustable.
- It can be equipped with the cap storage and lifting mechanism.
- It can be equipped with the mechanism for identifying reverse caps and eliminating nonconforming products.
- Replacement of parts is simple and easy to operate.
- The whole machine is designed according to GMP requirements.
Our service and warrantee
1.We can customize the machine as customer requried ; 2.Available for OEM/ODM service ; 3.Offer living broadcast or video support; 4.To Door installation and training serive ; 5. Offer filling line solution with customer required 6.Customer’s design are welcomed.
Main Technical parameters
Product model
XG/1
XG/2
Applicable bottle specification
20-500ml
Optional screw cap size
F12-70mm
Single machine noise
<=70dB
Applicable bottle type
flat, round, square
Number of cap turning heads
single-head
double-head
cap turning pass rate
>=99%
Power
0.8kw
1.2kw
Outline Size
2000*1000*1500mm
2000*1000*1500mm
weight
600kg
700kg
cap turning and pressing speed(bottle F40mm)
2400-3000 bottle/hour
3000-5000 bottle hour
Our Partner
Our service and warrantee
1.We can customize the machine as customer requried ; 2.Available for OEM/ODM service ; 3.Offer living broadcast or video support; 4.To Door installation and training service ; 5. Offer filling line solution with customer required 6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity and demands. We will provide you with associated design solutions and case videos.
